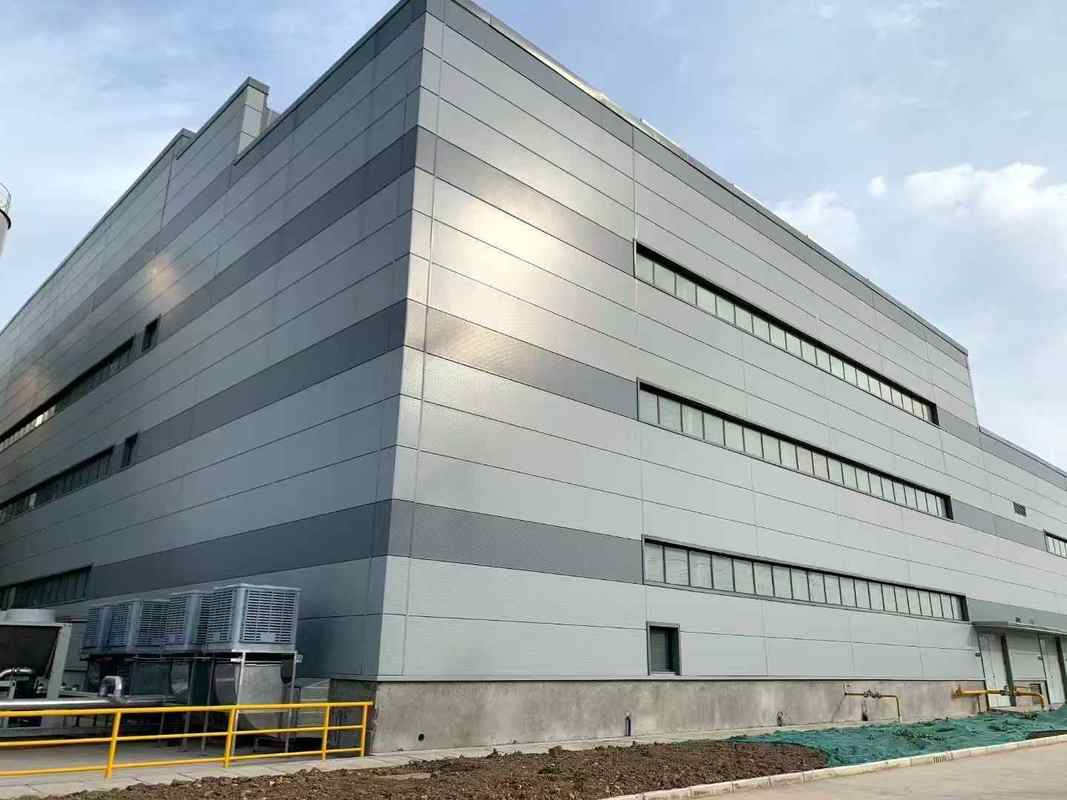

GB Standard Fireproof Steel Structure Warehouse with 50 Years Warranty

製品の詳細

ブランド名: Senwang

支払いおよび配送条件

最小注文数量: 300

価格: 40

受渡し時間: 30

支払条件: L/C、T/T

お問い合わせ

製品の詳細

製品説明

製品の詳細

ハイライト:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                GB Standard Steel Structure Warehouse, Fireproof Steel Structure Warehouse, 50 Years Warranty Steel Structure Warehouse


HSコード:	9606900090	タイプ:	ライト
フレームタイプ:	ポータルリジッドフレーム	標準:	GB,AISI
ブラシ:	Q235 丸い棒	構造保証:	50年
仕様:	軽量計鋼の格子付き倉庫	柱とビーム:	Hセクションカラムとビーム
カスタマイズ:	オーダー数: 5000	特徴:	プレハブ倉庫の鋼鉄の建物
抵抗:	耐性耐性	建物:	プレハブ鋼構造
材料:	鋼鉄	特徴:	耐火性/防水/防風
パラペットの壁:	要求どおり

HSコード:	9606900090
タイプ:	ライト
フレームタイプ:	ポータルリジッドフレーム
標準:	GB,AISI
ブラシ:	Q235 丸い棒
構造保証:	50年
仕様:	軽量計鋼の格子付き倉庫
柱とビーム:	Hセクションカラムとビーム
カスタマイズ:	オーダー数: 5000
特徴:	プレハブ倉庫の鋼鉄の建物
抵抗:	耐性耐性
建物:	プレハブ鋼構造
材料:	鋼鉄
特徴:	耐火性/防水/防風
パラペットの壁:	要求どおり

製品説明

Steel Structure Warehouse Specifications

Main Steel Frame Specifications

Component	Unit	Specification
Steel material	ton	Q345B, Q235B
Welding	ton	Automatic arc welding
Derusting	ton	Blasting derusting
Painting	ton	Twice base two face

Panel Material Parts

External Wall Panel (Selectable Options)

50mm, 75mm or 100mm thickness EPS sandwich panel
50mm, 75mm or 100mm thickness Rockwool sandwich panel
900# Corrugated Galvanized Steel sheet with different colors
Various PVC wall panels

Internal Wall Panel (Selectable Options)

50mm, 75mm or 100mm thickness EPS sandwich panel
50mm, 75mm or 100mm thickness Rockwool sandwich panel

Roofing Panel (Selectable Options)

50mm, 75mm or 100mm thickness EPS sandwich panel
50mm, 75mm or 100mm thickness Rockwool sandwich panel
Corrugated Steel Sheet with insulating layer (optional)
Corrugated PVC roof panel

Skylight

820# Glass Fiber Reinforced Plastics (FRP)

Door and Window Specifications

External Door

Over-heat Orbit Sliding Door with double open
Galvanized steel opening by power-operated Roller Door

Internal Door

50mm Thickness EPS sandwich panel with aluminum alloy door frame

Window

PVC Window or aluminum alloy window frame with glass

Senwang Steel Frame Structure Warehouse

1. Steel Structure Connection Method: Welding connection

2. Steel Structure Design Standards:

"Steel Design Code" (GB50017-2003)
"Cold-formed steel structure technical specifications" (GB50018-2002)
"Construction Quality Acceptance of Steel" (GB50205-2001)
"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)
"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)

3. Key Characteristics:

Customizable types and sizes according to customer needs
Large span capability: maximum span of 36m without middle column
Cost-effective with low maintenance: unit price range from $10/m² to $45/m²

Frequently Asked Questions

Q1: What are your main products?

A: Our main products include prefab K house, T house, SHS house, H house, container house, light steel structure villa, steel structure warehouse, sentry box, sandwich panel, and other construction materials.

Q2: What information does the client need to provide for a quotation?

A: Clients should provide a completed purchasing intention sheet with house dimensions, draft drawing, layout, and material preferences for the prefabricated house. We will then design the drawings and offer a competitive quotation.

Q3: What are the main materials of prefabricated houses?

A: Our prefabricated houses primarily use light steel structure, sandwich panel, roof tile, door, window, covers, screws, and other accessories.

Q4: How is the total area calculated?

A: Industry calculation rules are as follows:
(1) House area = exterior length * exterior width * floor
(2) Canopy area = exterior length * 1/2 * canopy width
(3) Staircase area = 4.5 sqm * quantity of staircase
(4) Corridor area = exterior length * corridor width
(5) Total area = sum of (1) through (4)

Q5: What drawings does the factory supply?

A: We provide plan drawing, elevation drawing, sectional drawing, foundation drawing, and installation drawing.

Q6: What types of sandwich panels do you offer?

A: We offer four types of sandwich panels:
1. EPS (polystyrene) sandwich panel: 50mm, 75mm, or 100mm thickness, waterproof
2. Rock wool sandwich panel: 50mm, 75mm, or 100mm thickness, fireproof with sound and heat insulation
3. Glass wool sandwich panel: 50mm, 75mm, or 100mm thickness, fireproof with sound and heat insulation
4. PU (polyurethane) sandwich panel: 50mm, 75mm, or 100mm thickness, waterproof, fireproof with excellent insulation properties

Q7: What color options are available for sandwich panels?

A: Available colors include off-white, ivory white, blue, green, and red.
